2 inch silicone coupler
| Brand | Kinglin |
| Material | Silicone |
| Color | Black |
| Item Dimensions LxWxH | 2 x 3 x 2 inches |
| Item Weight | 0.1 Pounds |
| Maximum Pressure | 150 Pound per Square Inch |
Product Description

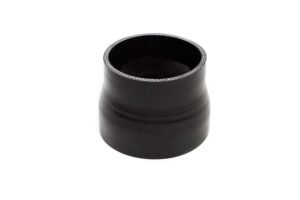

2 inch silicone coupler-4 Ply Reinforced High Temp Silicone Coupler
Kinglin 2 inch silicone coupler which is reinforced with 4-ply reinforced high temp! These layers are typically composed of silicone and fabric reinforcement. The additional layers provide extra strength, durability, and resistance to pressure and heat. Therefore, this product has stronger high-temperature resistance and toughness. It Can transport more types of liquids and gases, longer life in use.
A 2 inch silicone coupler is a specific type of hose connector made from silicone rubber, designed to connect two pipes, tubes, or components with a 2-inch diameter. Silicone couplers are commonly used in automotive, industrial, and other applications where a flexible and heat-resistant connection is required.
About this item
- Black 4-Ply Reinforced High Temp Silicone Coupler
- 2 Inch / 50mm Inner Diameter
- 3″ / 76.2mm Coupler Length provides proper tube engagement and added clamping area.
- 5mm /.2″ thick reinforced 4 ply silicone for heavy duty applications.
- 150 PSI Max Pressure Rating / Temperature rated to 350*F or 177*C
Features:
- Material: Silicone can withstand high temperatures and is often used in applications involving hot fluids or gases.
- Flexibility: Silicone couplers are flexible, making them easy to install and adapt to various angles and bends.
- Temperature Resistance: Silicone rubber has excellent temperature resistance, making it suitable for applications involving heat.
- Abrasion and Chemical Resistance: This type of rubber is resistant to abrasion and many chemicals.
- Versatility: Silicone couplers are used in a wide range of applications.
Product Specification
| Product | silicone hose coupler |
|---|---|
| Material | Silicone rubber + Fabric reinforcement |
| Reinforcement | Polyester cloth or Aramid cloth |
| Temperature | -60 ° C ~ 260 ° C |
| Colors | transparent, white, black, red, yellow, green (can also be required to produce) |
| Pressure | 0.3Mpa~1.2Mpa |
| Shape | Straight hose |
| 45/90/135/180-degree elbow hose | |
| hump hose | |
| reducer hose | |
| silicone hose kits | |
| L/Y/S/Z shape or any customized shape | |
| Layers | 1~5 layers or as request |
| Inner Diameter | 6mm ~ 150mm or according to the customer’s requirement |
| OEM/ODM | Available |
| thickness | 2mm-6mm |
| Hardness | 35~80 shore A |
| We also could produce special shape products according to customer’s drawings or samples. | |
Why did you choose Kinglin silicone hose manufacturer’s products？
- Material Quality: High-quality silicone hoses are typically made from premium silicone rubber that is resistant to heat, UV radiation, ozone, and various chemicals. Inquire about the specific type and grade of silicone used in Kinglin Silicone hoses.
- Reinforcement: A sign of quality in silicone hoses is the type and quality of reinforcement. Hoses may be reinforced with fabric, wire, or other materials to enhance their strength and durability.
- Manufacturing Processes: Ask about the manufacturing processes Kinglin Silicone uses. Modern manufacturing methods, such as extrusion, molding, and vulcanization, contribute to consistent quality and performance.
- Certifications: Reputable manufacturers often adhere to industry standards and hold certifications that attest to their product quality. Inquire if Kinglin Silicone has certifications like ISO 9001 or specific certifications relevant to silicone hose manufacturing.
