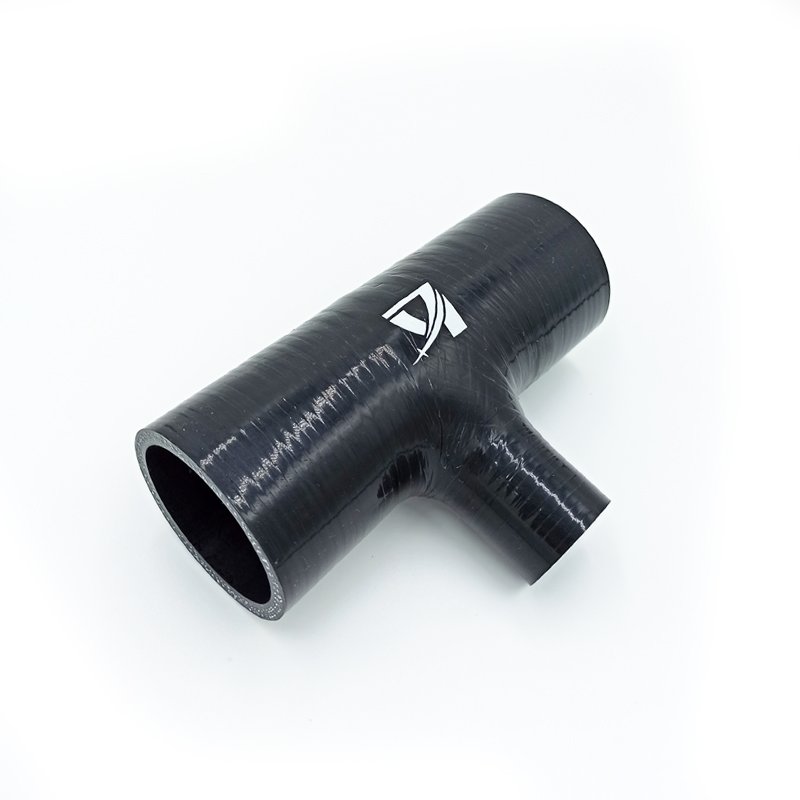

Tubo in silicone tipo T

Prodotto

T type silicone hose

Materiale

Gomma di silicone + Rinforzo in tessuto

Temperatura

-60 ° C ~ 260 °C

OEM/ODM

Disponibile

Descrizione del prodotto

TOP Silicone Hose Manufacture

T-type Silicone Hose Series Products
Welcome your various inquiries about our products, We will do our best to satisfy you well with competitive prices as per your request.
This product is insulating and non-conductive
This product resists damage from chemical corrosion.
This product has Excellent ozone and UV resistance.
Vantaggio: Polyester or Nomex layers enable high temp and pressure than the original rubber hose does and the silicone tube can bear the high low temperature, non-toxic tasteless, insulation, anti-ozono, bear burning, oil resistant

Silicone Hose Performance Specification

1, Hardness Range: 30-80 durometro
2, Thickness Range: 2mm to 5mm, 3-5ply
3, Colore: Nero / rosso / blu / viola / giallo / orange/as your requirement
4, OEM hose are welcome (with your logo on it)

T type silicone hose Product Application

Utilizzo: For charge coolant and water, on intercooler, radiator, turbocharger, and supercharger



T type silicone hose Product Specification

Prodotto T-type silicone hose
Materiale Gomma di silicone + Rinforzo in tessuto
Rinforzo Tela in poliestere o tela in aramide
Temperatura -60 ° C ~ 260 °C
Colori trasparente, bianco, nero, rosso, giallo, verde (può anche essere richiesto di produrre)
Pressione 0.3Mpa~1.2Mpa
Forma tubo in silicone tipo u
s type silicone hose
tubo a gomito in silicone
tubo in silicone per camion
Forma L/Y/S/Z o qualsiasi forma personalizzata
Diametro interno 6mm ~ 135 mm o secondo le esigenze del cliente
OEM/ODM Disponibile
Antibiotics and anti-corrosion property Bene
Durezza 35~80 sponda A



S.NO Codice prodotto ID1 ID2 ID1 ID2 LUNGHEZZA LUNGHEZZA PARETE PLY W.P
mm mm Pollice Pollice mm pollice mm
1 T-38-25/102X45P3 38 25 1 1/2 1 102X45 4 3 0.6MPa (87Psi)
2 T-45-25/102X45P4 45 25 1 7/9 1 102X45 5 4 0.56MPa (80Psi)
3 T-48-25/102X45P4 48 25 1 8/9 1 102X45 5 4 0.5MPa (72Psi)
4 T-51-25/102X45P4 51 25 2 1 102X45 5 4 0.5MPa (72Psi)
5 T-51-38/102X45P4 51 38 2 1 1/2 102X45 5 4 0.5MPa (72Psi)
6 T-54-25/102X45P4 54 25 2 1/8 1 102X45 5 4 0.44MPa (64Psi)
7 T-57-25/102X45P4 57 25 2 1/4 1 102X45 5 4 0.4MPa (57Psi)
8 T-57-38/102X45P4 57 38 2 1/4 1 1/2 102X45 5 4 0.4MPa (57Psi)
9 T-60-25/102X45P4 60 25 2 1/3 1 102X45 5 4 0.4MPa (57Psi)
10 T-63-25/102X45P4 63 25 2 1/2 1 102X45 5 4 0.4MPa (57Psi)
Di più Di più MORE MORE Di più Di più Di più Di più Di più Di più



Other Products

We can offer the following auto silicone hose&coupler:

1, Tubo in silicone

1) Tubo dritto in silicone

2) 45° /90° /135° /180° Standard elbows

3) Straight reducer silicone hose

4) Reducer elbows silicone hose

5) Straight humps/ T silicone hoses

2, car silicone Radiator hose kit

4, Tubo in silicone per camion

6, Vacuum silicone hose

7, Clamp hose

8, Aluminum Piping and stainless steel piping

9, Tubo in gomma

If you can’t find the product you want, please contact us directly
