περιγραφή προϊόντος
Product description

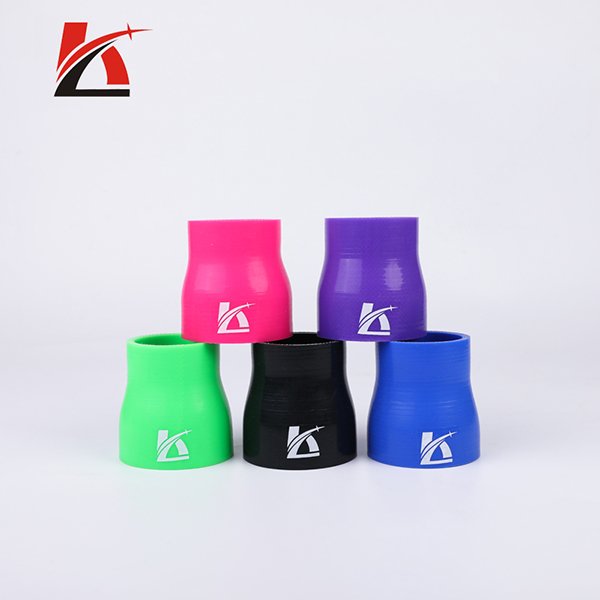

silicone transition hoses are made of 3-5-ply reinforced and knitted premium polyester fabric with high temperature silicone rubber, engineered for extreme temperature and various pressure ranges where high performance levels are required.
For which meet or exceed SAEJ20 Standard. Silicon Reducing Coupler Hoses are used by professionals in industries such as high performance racing vehicles, commercial truck and bus, θαλάσσια, agricultural and off highway vehicles, turbo diesel, φαγητο και ΠΟΤΟ, και γενικές μεταποιητικές βιομηχανίες.
Χαρακτηριστικά Προϊόντος
– Θερμοκρασία εργασίας -60 to +260° C
– Excellent ply adhesion from the inner core to the outer layers
– Bright gloss Black finish
– Not recommended for use with oil and fuel
– Αντοχή στις καιρικές συνθήκες στο σκληρό ηλιακό φως, dry conditions and rain wate
Product Parameter:
| S.NO | P/N | ID1 | ID2 | ID1 | ID2 |
| mm | mm | Ιντσα | Ιντσα | ||
| 1 | 16-13/102 | 16 | 13 | 5/8 | 1/2 |
| 2 | 19-13/102 | 19 | 13 | 3/4 | 1/2 |
| 3 | 19-16/102 | 19 | 16 | 3/4 | 5/8 |
| 4 | 22-16/102 | 22 | 16 | 6/7 | 5/8 |
| 5 | 22-19/102 | 22 | 19 | 6/7 | 3/4 |
| 6 | 25-16/102 | 25 | 16 | 1 | 1 |
| 7 | 25-19/102 | 25 | 19 | 1 | 1 |
| 8 | 25-22/102 | 25 | 22 | 1 | 1 |
| 9 | 28-22/102 | 28 | 22 | 1 1/9 | 6/7 |
| 10 | 28-22/102 | 28 | 22 | 1 1/9 | 1 |
| 11 | 32-19/102 | 32 | 19 | 1 1/4 | 3/4 |
| 12 | 32-25/102 | 32 | 25 | 1 1/4 | 1 |
| 13 | 32-28/102 | 32 | 28 | 1 1/4 | 1 1/9 |
| 14 | 35-22/102 | 35 | 22 | 1 3/8 | 6/7 |
| 15 | 35-25/102 | 35 | 25 | 1 3/8 | 1 |
| 16 | 35-28/102 | 35 | 28 | 1 3/8 | 1 1/9 |
| 17 | 35-30/102 | 35 | 30 | 1 3/8 | 1 1/6 |
| 18 | 35-32/102 | 35 | 32 | 1 3/8 | 1 1/4 |
| 19 | 38-22/102 | 38 | 22 | 1 1/2 | 6/7 |
| 20 | 38-25/102 | 38 | 25 | 1 1/2 | 1 |
| 21 | 38-28/102 | 38 | 28 | 1 1/2 | 1 1/9 |
| 22 | 38-32/102 | 38 | 32 | 1 1/2 | 1 1/4 |
| 23 | 38-35/102 | 38 | 35 | 1 1/2 | 1 3/8 |
| 24 | 41-35/102 | 41 | 35 | 1 3/5 | 1 3/8 |
| 25 | 45-32/102 | 45 | 32 | 1 7/9 | 1 1/4 |
| 26 | 45-35/102 | 45 | 35 | 1 7/9 | 1 1/4 |
| 27 | 45-38/102 | 45 | 38 | 1 7/9 | 1 1/2 |
| 28 | 47-42/102 | 47 | 42 | 1 6/7 | 1 2/3 |
| 29 | 48-30/102 | 48 | 30 | 1 8/9 | 1 1/6 |
| 30 | 51-32/102 | 51 | 32 | 2 | 1 1/4 |
| 31 | 51-38/102 | 51 | 38 | 2 | 1 1/2 |
| 32 | 51-40/102 | 51 | 40 | 2 | 1 4/7 |
| 33 | 51-45/102 | 51 | 45 | 2 | 1 7/9 |
| 34 | 54-48/102 | 54 | 48 | 2 1/8 | 1 8/9 |
| 35 | 54-51/102 | 54 | 51 | 2 1/8 | 2 |
| 36 | 57-47/102 | 57 | 47 | 2 1/4 | 1 6/7 |
| 37 | 57-45/102 | 57 | 45 | 2 1/4 | 1 7/9 |
| 38 | 57-47/102 | 57 | 47 | 2 1/4 | 1 6/7 |
